Galvanized steel sheet is a metal material that prevents rust by plating zinc onto its surface. It is widely used in construction, home appliances, automobiles, and other industries.

There are two main processes: hot-dip galvanizing and cold-dip galvanizing.
Hot-dip galvanizing: The steel sheet is immersed in molten zinc. The zinc layer is thicker (typically 40-900 g/m²), offering strong corrosion resistance and making it suitable for outdoor or humid environments.
Cold-dip galvanizing: A zinc layer is formed through electroplating. The surface is smoother but thinner, and the cost is lower.

Hot-dip galvanized (HDG) steel plate is carbon steel coated with a zinc layer through immersion in molten zinc (typically 450°C/842°F). Key features:
Superior corrosion resistance (zinc sacrificially protects steel)
Durable coating (typical lifespan: 20-70 years)
Excellent adhesion (metallurgically bonded)
Cost-effective protection vs stainless steel
Standards: ASTM A123 (US), EN ISO 1461 (EU), JIS H 8641 (Japan)
Manufacturing Process
Surface Preparation:
Alkaline cleaning → Acid pickling → Fluxing
Galvanizing:
Immersion in 445-465°C zinc bath (3-10 minutes)
Post-Treatment:
Quenching → Passivation → Inspection
Applications
Transmission towers
Bridge components
Industrial walkways
Agricultural equipment
Marine structures
HVAC ducting

275Z Galvanized Sheet
1. Material Overview

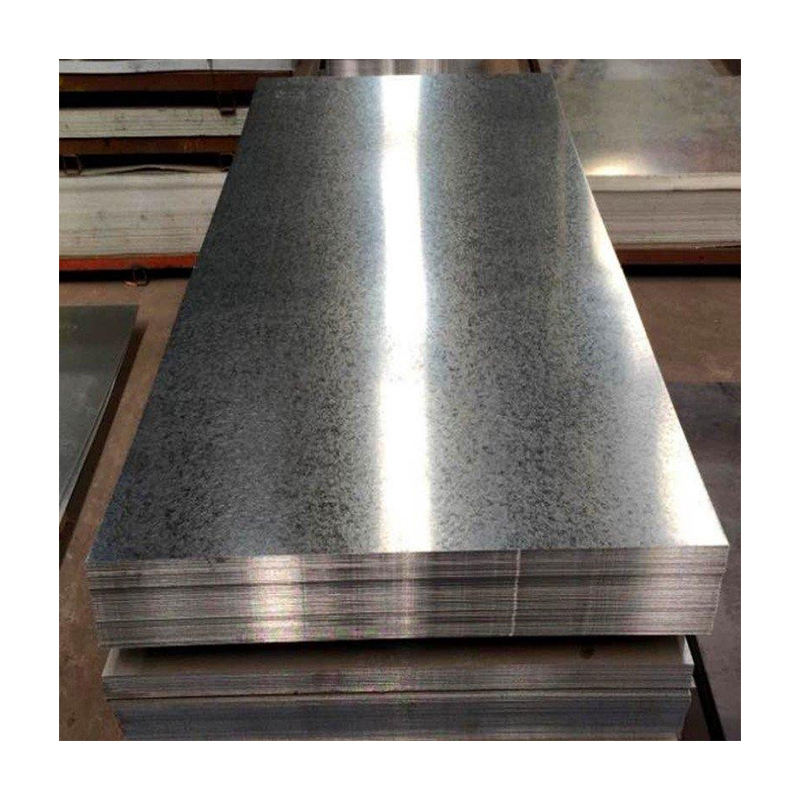

275Z galvanized sheet refers to steel with a 275 g/m² zinc coating (total both sides), offering:
Superior corrosion protection (heavy-duty coating)
Good formability and weldability
Suitable for harsh environments
Typical base material: Mild steel (e.g., DX51D, S350GD)
Key Standards: EN 10346 (Europe), ASTM A653 (USA), JIS G3302 (Japan)
Coating Specifications
Parameter Value
Coating Designation Z275 (275 g/m² total)
Zinc Thickness ~20μm per side
Coating Type Hot-dip galvanized
Spangle Options Regular/Minimized/Zero
Common Applications
Heavy-duty roofing & cladding
Transmission towers
Highway sound barriers
Agricultural buildings
Industrial storage tanks
Bridge components

Galvanized steel is a steel sheet coated with zinc, primarily for corrosion protection. It's primarily made from ordinary carbon structural steel. The zinc layer is deposited on the steel sheet through various processes to extend its service life.
Material Classifications
Hot-Dip Galvanized Steel Sheet
Electrogalvanized Steel Sheet
Alloyed Galvanized Steel Sheet
Applications
Applications requiring corrosion resistance include lightweight steel structures for buildings, highway guardrails, and steel silos.

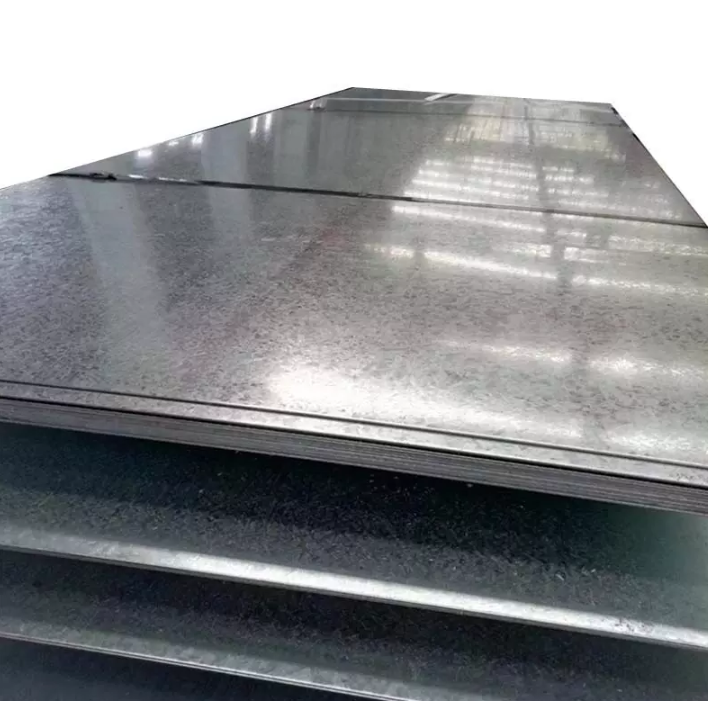

Electro-galvanized steel sheet is a metallic material made by electrolytically plating zinc onto the surface of steel sheet. It possesses corrosion resistance and wear resistance properties and is widely used in construction, machinery, and home appliances. Its zinc layer is relatively thin (typically 20-50 g/m²), resulting in a high surface finish suitable for precision machining.

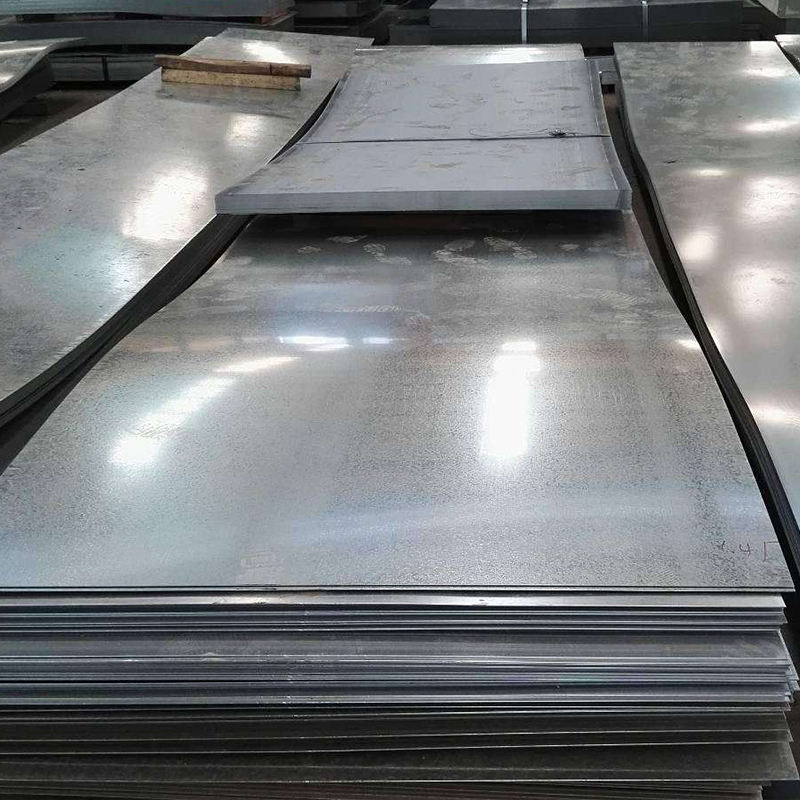

DX51D Z100 galvanized steel sheet is a type of hot-dip galvanized cold-rolled steel sheet.
Basic Parameters:
Grade: DX51D+Z100, belonging to the hot-dip galvanized series
Zinc layer weight: Z100 indicates a zinc layer weight of 100 grams per square meter
Thickness range: 0.12-6.0mm
Width range: 20-1500mm
Yield strength: 270-500 N/mm²
Chemical Composition:
Carbon (C) ≤0.18%
Manganese (Mn) ≤1.2%
Phosphorus (P) ≤0.12%
Sulfur (S) ≤0.045%
Silicon (Si) ≤0.5%

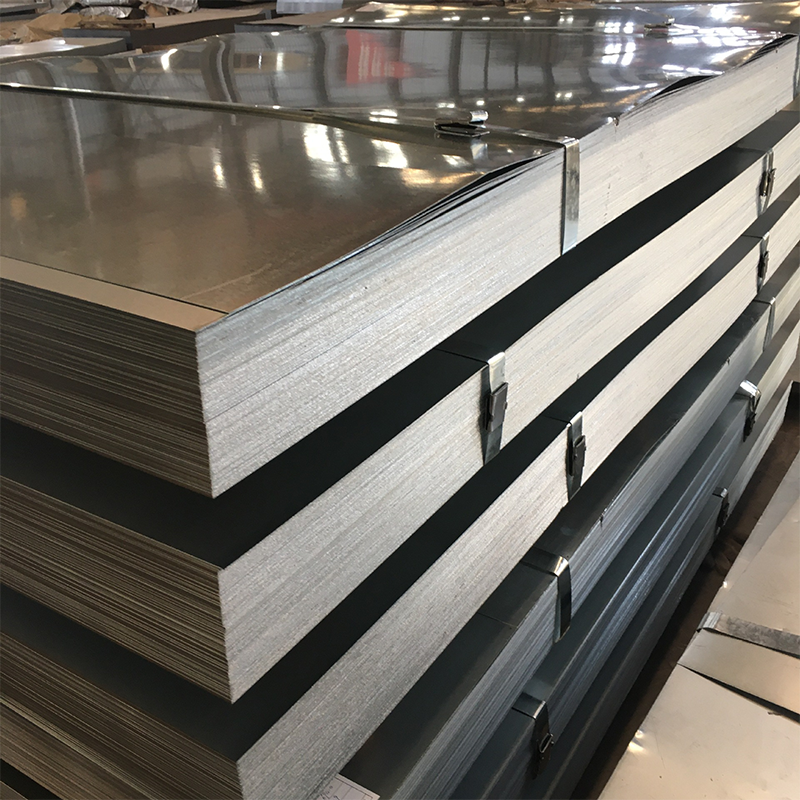

DX51D+Z275 hot-dip galvanized steel sheet is a type of cold-rolled steel sheet with the following characteristics:
Basic Parameters

Grade: DX51D+Z275, belonging to the hot-dip galvanized series

Zinc Coating Weight: Z275 indicates a zinc coating weight of 275 grams per square meter

Thickness Range: 0.12-4.0mm

Yield Strength: 270-500 N/mm²
Chemical Composition
Carbon (C) ≤0.18%
Manganese (Mn) ≤1.2%
Phosphorus (P) ≤0.12%
Sulfur (S) ≤0.045%
Silicon (Si) ≤0.5%

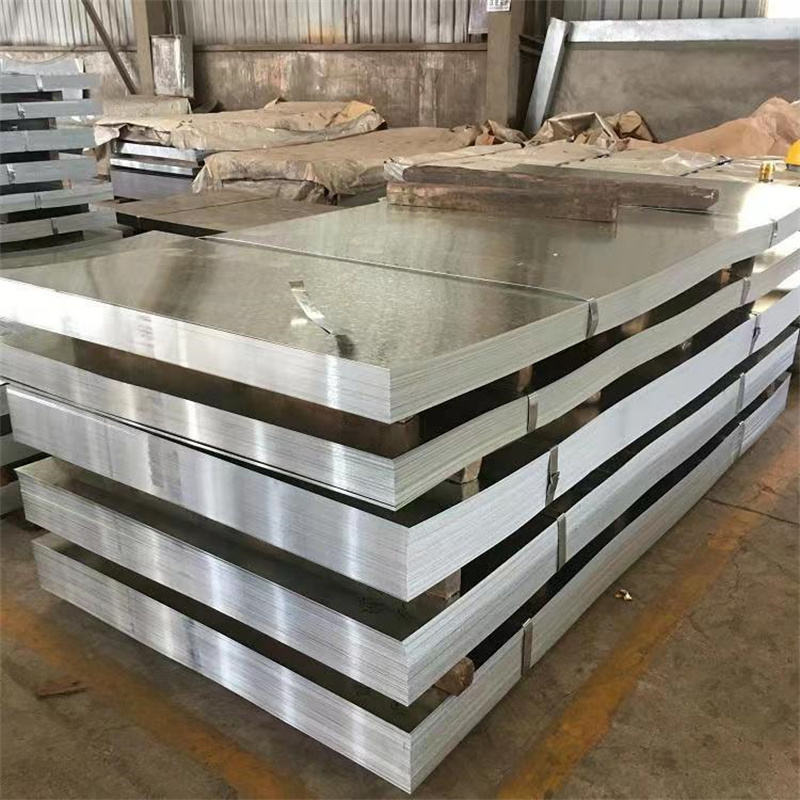

ASTM A653 is the standard specification for steel sheet, zinc-coated (galvanized) or zinc-iron alloy-coated (galvannealed) by the hot-dip process.
Key features:
Structural and formable grades available
Multiple coating designations
Suitable for exposed applications
Base metal options from commercial steel to high-strength alloys
Common Applications:
Roofing and siding systems
HVAC ductwork
Electrical enclosures
Agricultural equipment
Automotive components
Surface Finish Options
Regular Spangle - Visible zinc crystallization pattern
Minimized Spangle - Heat-treated for uniform appearance
Skin-Passed - Improved surface for painting
Phosphatized - Enhanced paint adhesion
Chromated - Temporary corrosion protection

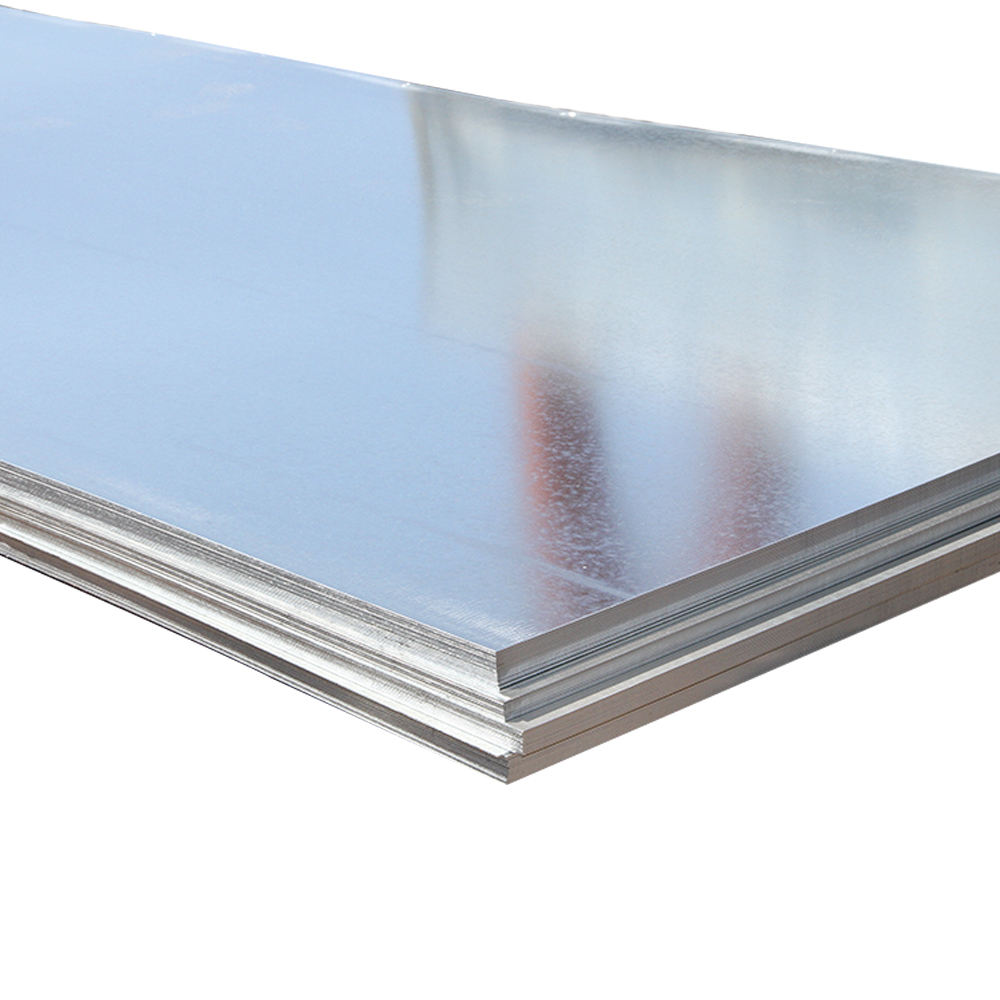

ASTM A283 Grade C galvanized sheet combines:
Base metal: ASTM A283 Gr.C carbon steel (low/medium strength)
Coating: Hot-dip zinc (typically G90 or Z275 coating)
Applications: Structural components requiring corrosion protection
Key Standards:
Base Metal: ASTM A283
Galvanizing: ASTM A123 (HDG) or A653 (sheet)
Mechanical Properties After Galvanizing
Yield Strength: Typically reduced by 5-10%
Tensile Strength: Generally unaffected
Formability: Slightly improved (zinc lubricates)
Hardness: Surface ~70-90 HV (zinc layer)
Applications
Electrical enclosures
Agricultural equipment
Storage racks
HVAC components
Light structural framing

DX51D is a European standard (EN 10346) galvanized steel sheet with:
Cold-forming capability (D = deep drawing quality)
Zinc coating for corrosion protection
Excellent surface quality
Good paint adhesion properties
Key standards: EN 10346, EN 10143
Processing Characteristics
Process Recommendations
Cutting Shear, laser, or nibbling
Welding Spot welding (recommended parameters: 8-10 kA)
Forming Excellent for deep drawing
Painting Requires degreasing and phosphating
Common Applications
Roofing and cladding systems
Automotive body panels
HVAC ductwork
Household appliances
Metal furniture
Electrical enclosures

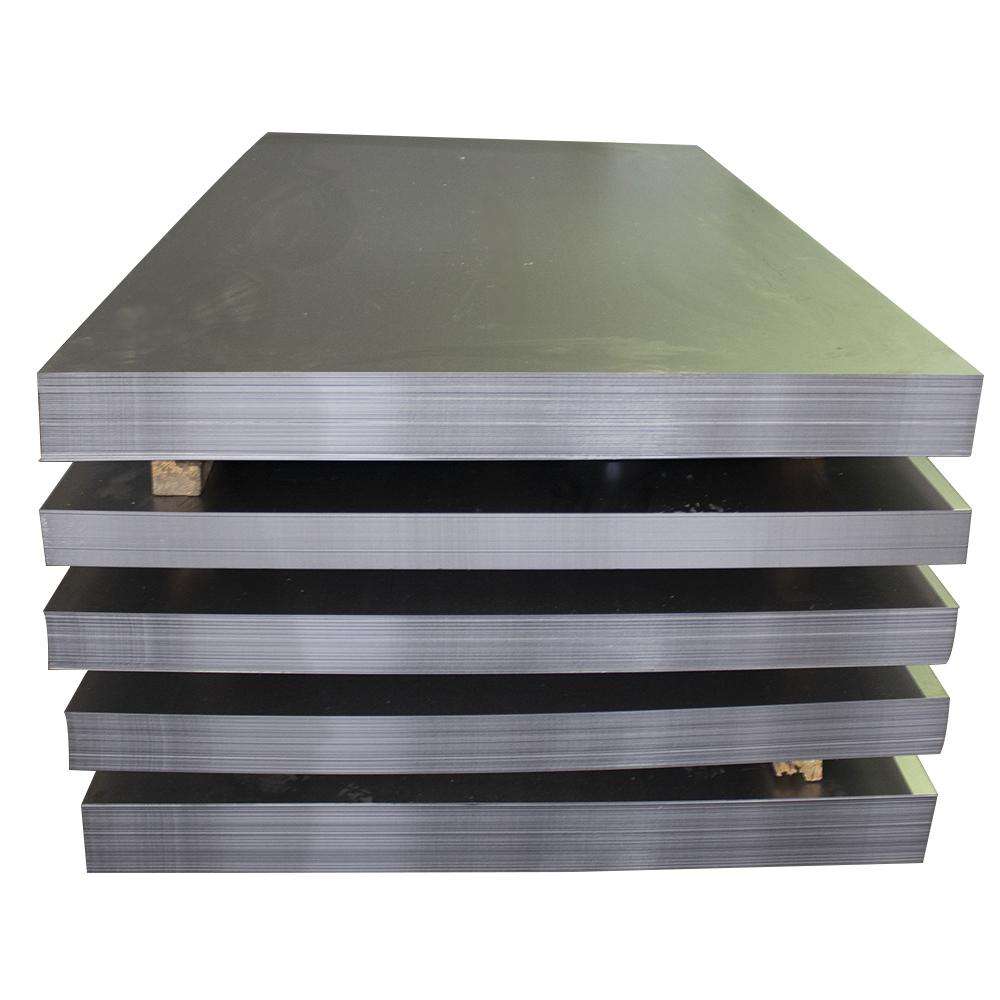

Q235 galvanized steel sheet is a carbon structural steel (GB/T 700 standard) with zinc coating for corrosion protection. Key features:
Base material: Q235 carbon steel (similar to ASTM A36)
Coating: Hot-dip galvanized (Zinc layer)
Good weldability and formability
Cost-effective corrosion protection
Standards: GB/T 700 (base material), GB/T 2518 (galvanized sheet)
Galvanizing Specifications
Parameter Typical Value
Coating Type Hot-dip galvanized
Coating Mass Z60-Z275 (60-275 g/m²)
Coating Thickness 8-65μm per side
Spangle Regular/Small/Zero
Common Applications
Roofing and wall panels
HVAC ductwork
Electrical enclosures
Agricultural equipment
Storage racks and shelving
